HWrkSht 1_8
The Marking Guide has been made available. Use this where you are having difficulty to help you understand the question better. Simply copying the answers from the Marking Guide will not help you learn, using it to help you understand the questions/ answers will.
You will need your Glow login to access the Marking Guide.

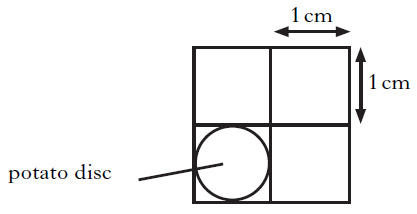

1. The diagram below shows the initial diameter of a potato disc.
The potato disc was placed in a high water concentration for one hour.

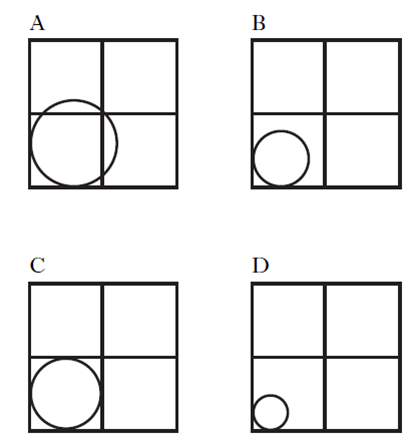

Which of the diagrams shows correctly the change in the diameter of the potato disc?

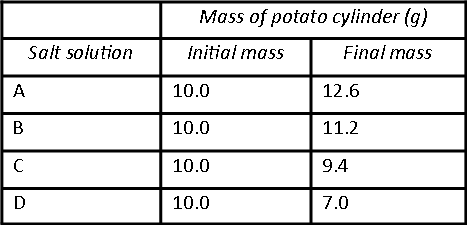

2. Four cylinders of potato tissue were weighed and each was placed into a salt solution of different concentration. The cylinders were reweighed after one hour.
The results are shown in the following table.
In which salt solution would most potato cells be plasmolysed?
3. Of what are the carrier molecules involved in the process of active transport made?
4. Red blood cells have a solute concentration of around 0.9%. Which of the following statements correctly describes the fate of these cells when immersed in a 1% salt solution?
a. The cells will burst b. The cells will shrink
c. The cells will expand but not burst d. The cells will remain unaffected
5. Which of the following describe passive transport?
6. What are the correct labels for S and T in the diagram below?
7. The diagram below shows Paramecium, a single-celled organism which lives in water.
a) The water concentration outside the cell is higher than the water concentration of the cytoplasm. This causes water to enter the cell constantly.
i. What is the name for this movement of water?
ii. From the information given, state whether Paramecium is likely to live in fresh water or salt water. Explain your choice.
b) Paramecium must get rid of excess water. Pure water is collected in the vacuoles by removing it from the cytoplasm. The vacuoles are emptied to the surrounding water as soon as they are full.
i. What would happen to the Paramecium cell if the vacuoles stopped working properly?
ii. The vacuoles are not filled by the diffusion of water. What evidence is there to support this statement?
